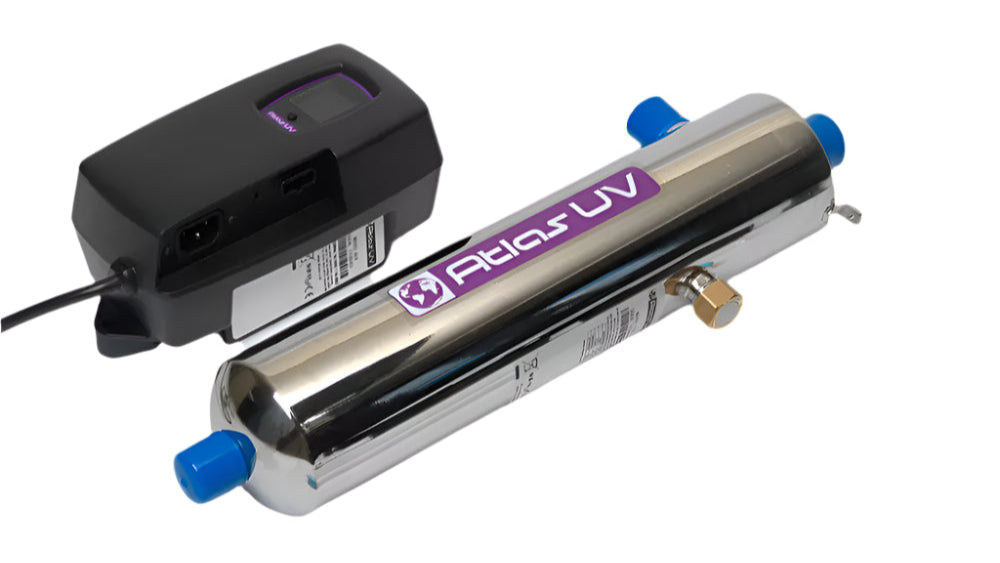

Atlas H38 Ultraviolet (UV) WRAS Approved Unit (38 L/min)
Atlas H38 Ultraviolet (UV) WRAS Approved Unit (38 L/min)
SKU:AH38F
- Free shipping when you spend over £70 (incl. VAT).
Couldn't load pickup availability
The Atlas ’H’ range is designed for reliable disinfection of drinking water and can treat flows from 38 l/min (2.3 m³/hr) up to 151 l/min (9.1 m³/hr). These WRAS Approved compact units benefit from axial flow polished 316L stainless steel UV chambers coupled to a unique and innovative controller featuring a user friendly colour LCD display that provides meaningful us-er feedback messages.
H38 Specification:
| Flow rate | 37.9 L/min |
| Connection size | 3/4" NPT |
| Lamp Power (watts) | 34 |
| Unit Power (watts) | 36 |
| Lamp life | 10,000 hours |
| Replacement lamp | RL-H38 |
| Replacement Quartz | RQ-H38 |
| UV Unit dimensions | 8.9 x 42cm |
| Controller dimensions | 217 x 107 x 90cm |
| Power supply | 90-265V / 50-60Hz |
| Chamber Material | 316L Stainless Steel |
| Operating pressure | Up to 10.3bar / 150 psi |
| Water temperature | 2-40°C / 36-104°F |
| UV Sensor Upgrade | Available |
| Volt Free Contact Upgrade | Available |
| 4 - 20 mA Output Upgrade | Available |
| Shipping Weight | 5.4kg |
| Alarm | Audio & Visual for lamp change & lamp out. |
Why choose Atlas UV?
• Intuitive colour user interface
• Simple plug and play installation
• Upgradeable platform (you can add a UV sensor or other options in the future if your needs change)
• QR codes allow a direct link for service support and spare parts
• Simple twist and turn lamp change
• Superb warranty
• Quality Canadian manufacture with full UK based sales support, spares and backup
