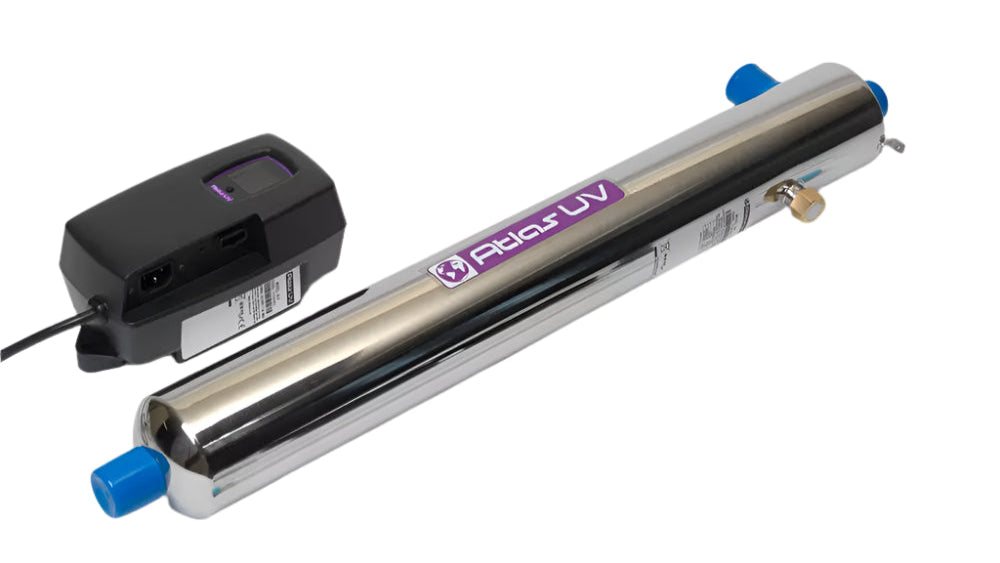

Atlas H95 Ultraviolet (UV) WRAS Approved Unit (95 L/min)
Atlas H95 Ultraviolet (UV) WRAS Approved Unit (95 L/min)
SKU:AH95F
Regular price
£830.96 GBP
Regular price
Sale price
£830.96 GBP
Unit price
/
per
Shipping calculated at checkout.
- Free shipping when you spend over £70 (incl. VAT).
Couldn't load pickup availability
The Atlas ’H’ range is designed for reliable disinfection of drinking water. These WRAS Approved compact units benefit from axial flow polished 316L stainless steel UV chambers coupled to a unique and innovative controller featuring a user friendly colour LCD display that provides meaningful user feedback messages.
H95 Specification:
| Flow Rate | 95 L/min | 5.7 m3/hr |
| Connection Size | 1" NPT |
| Lamp Power (watts) | 67 |
| Unit Power (watts) | 72 |
| Lamp Life | 10,000 hours |
| Replacement Lamp | RL-H95 |
| Replacement Quartz | RQ-H95 |
| UV Unit Dimensions | 8.9 x 69cm |
| Controller Dimensions | 217 x 107 x 90cm |
| Power Supply | 90-265V / 50-60Hz |
| Chamber Material | 316L Stainless Steel |
| Operating Pressure | Up to 10.3bar / 150 psi |
| Water Temperature | 2-40°C / 36-104°F |
| UV Sensor Upgrade | Available |
| Volt Free Contact Upgrade | Available |
| 4 - 20 mA Output Upgrade | Available |
| Shipping Weight | 7.2kg |
| Alarm | Audio & Visual for lamp change & lamp out. |
Why choose Atlas UV?
- Intuitive colour user interface
- Simple plug and play installation
- Upgradeable platform (you can add a UV sensor or other options in the future if your needs change)
- QR codes allow a direct link for service support and spare parts
- Simple twist and turn lamp change
- Superb warranty
- Quality Canadian manufacture with full UK based sales support, spares and backup.
