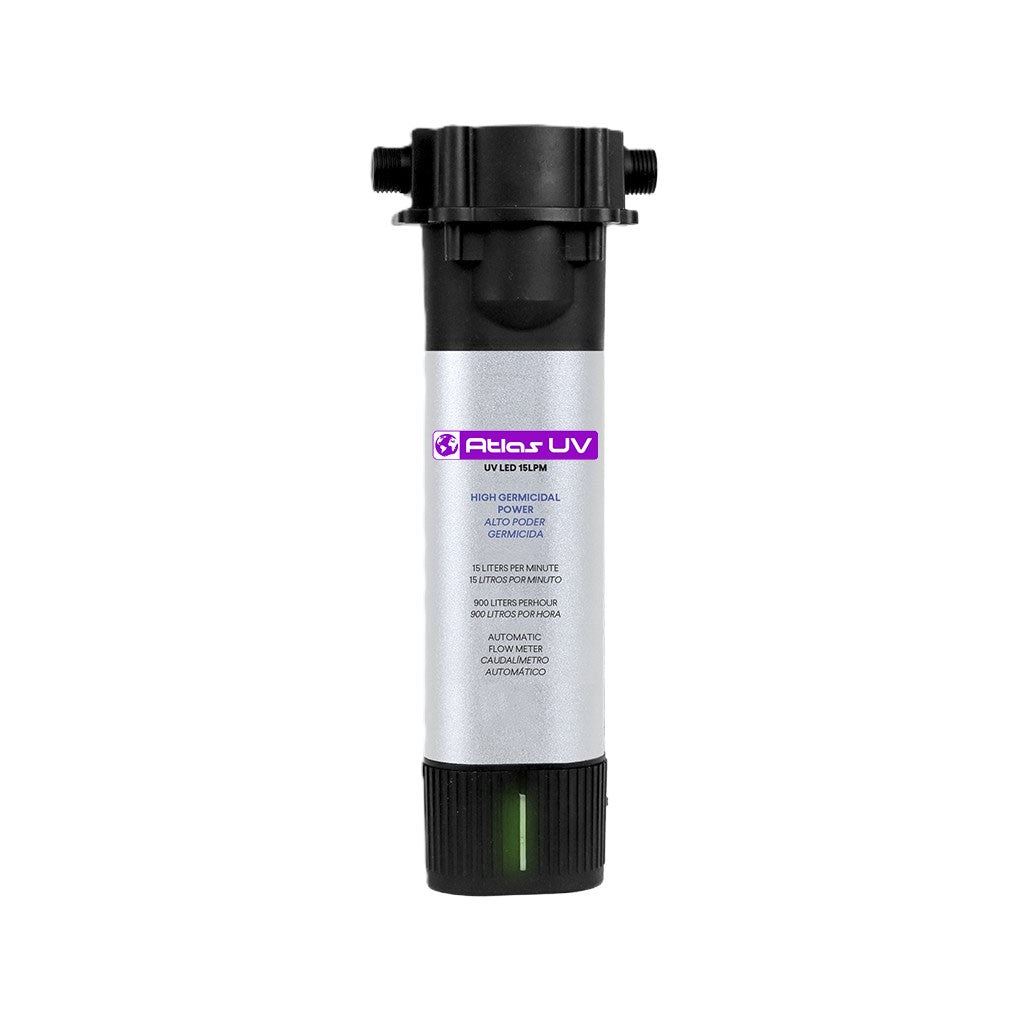

Atlas Ultraviolet UV LED 1/2 in - 15L/min System
Atlas Ultraviolet UV LED 1/2 in - 15L/min System
SKU:
- Free shipping when you spend over £70 (incl. VAT).
Couldn't load pickup availability
The Atlas LED UV 15LPM is a compact and efficient UV-C sterilisation system designed to provide reliable protection against bacteria and microorganisms in drinking water applications. Delivering up to 99.9% sterilisation efficiency against E. Coli at flow rates up to 15 litres per minute, it offers safe, chemical-free water disinfection without impacting taste, odour, or water temperature.
Featuring intelligent flow-activated operation, the system automatically powers on when water is flowing and switches off when not in use, helping to improve efficiency and extend the 3,000-hour LED service life. Integrated LED status indicators provide clear visual monitoring of operational status and maintenance requirements.
With durable polypropylene and aluminium alloy construction, IPX7 waterproof protection, and compact 1/2” connection sizing, the Atlas LED UV 15LPM is ideal for reverse osmosis systems, undersink filtration units, and compact commercial water treatment installations requiring dependable UV performance.

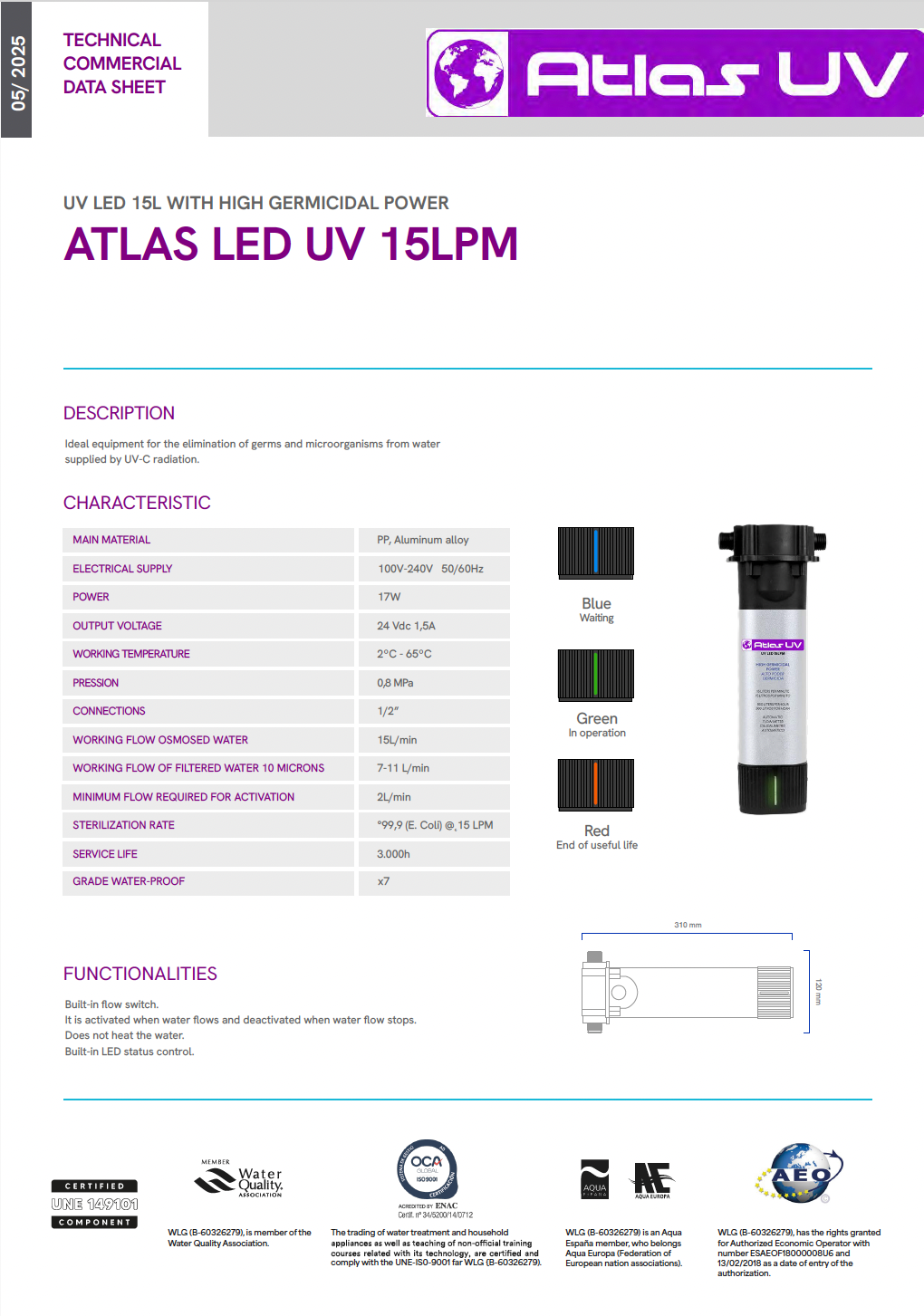

| Main Material | PP, Aluminium alloy |
| Electrical Supply | 100V–240V 50/60Hz |
| Output Voltage | 24 Vdc 1.5A |
| Power | 17 W |
| Working Temperature | 2°C – 65°C |
| Pressure | 0.8 MPa |
| Connections | 1/2” |
| Working Flow Osmosed Water | 15 L/min |
| Working Flow of Filtered Water (10 Microns) | 7–11 L/min |
| Minimum Flow Required for Activation | 2 L/min |
| Sterilisation Rate | 99.9% (E. Coli) @ 15 LPM |
| Service Life | 3,000 hours |
| Waterproof Grade | x7 |
| Functionalities | Built-in flow switch activates with water flow |
| Does not heat the water | |
| Built-in LED status control | |
| Dimensions | 310 mm x 120 mm |
