Atlas Ultraviolet UV LED 1/2 in - 25L/min System
Atlas Ultraviolet UV LED 1/2 in - 25L/min System
SKU:
- Free shipping when you spend over £70 (incl. VAT).
Couldn't load pickup availability

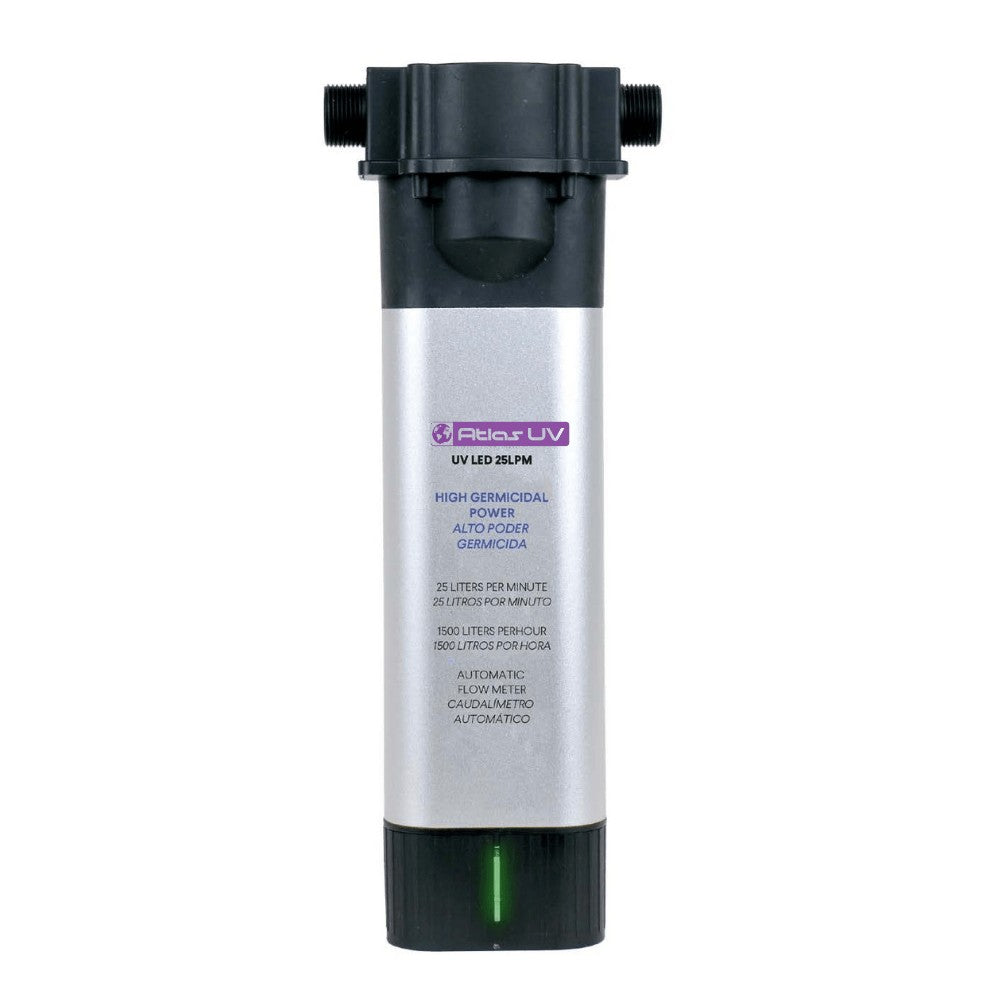

The Atlas LED UV 25LPM combines high-performance UV-C sterilisation with intelligent energy-saving operation, delivering reliable microbiological protection for medium to high-flow water treatment systems. Capable of eliminating up to 99.9% of E. Coli and harmful microorganisms at flow rates up to 25 litres per minute, it provides safe, chemical-free disinfection without affecting water taste or temperature.
Designed with an integrated flow switch and LED status monitoring system, the unit automatically activates only when water is flowing, improving efficiency and helping to maximise the 3,000-hour LED service life. Its durable polypropylene and aluminium alloy construction, combined with an IPX7 waterproof rating, makes it suitable for demanding domestic and commercial installations alike.
With 3/4” connections and strong performance across both filtered and reverse osmosis water systems, the Atlas LED UV 25LPM is ideal for point-of-use systems, commercial RO units, and premium drinking water applications requiring dependable UV protection.

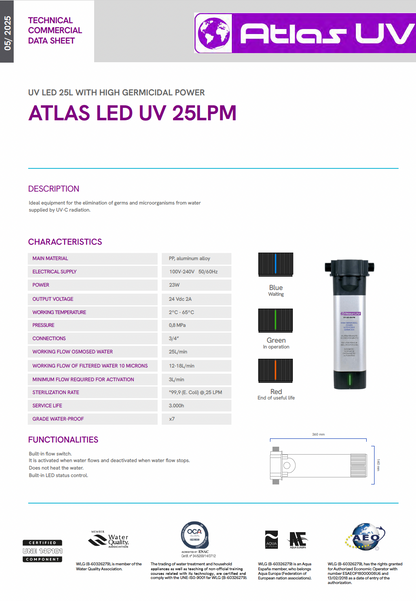

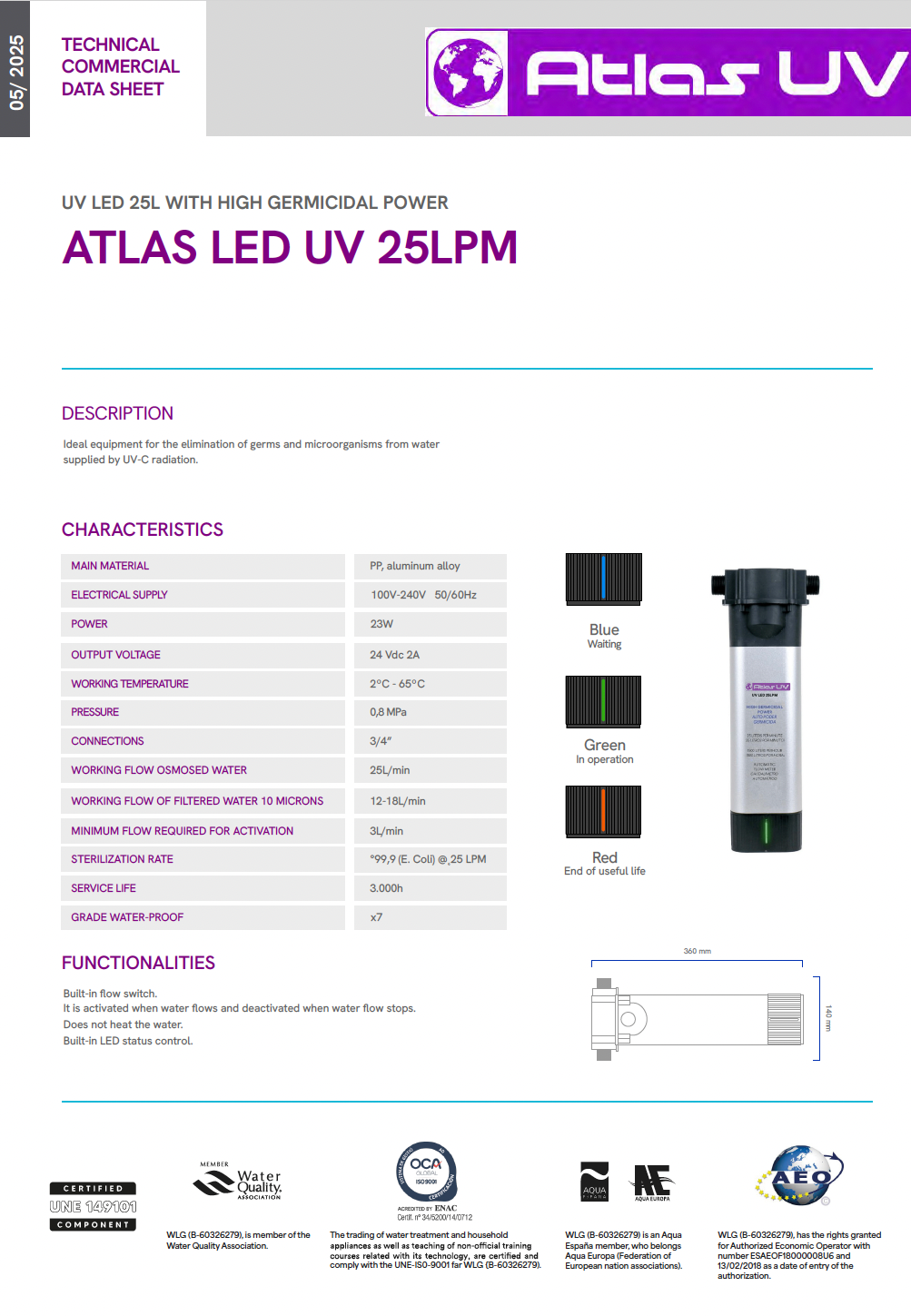

| Main Material | PP, Aluminium alloy |
| Electrical Supply | 100V–240V 50/60Hz |
| Output Voltage | 24 Vdc 2A |
| Power | 23 W |
| Working Temperature | 2°C – 65°C |
| Pressure | 0.8 MPa |
| Connections | 3/4” |
| Working Flow of Osmosed Water | 25 L/min |
| Working Flow of Filtered Water (10 Microns) | 12–18 L/min |
| Minimum Flow Required for Activation | 3 L/min |
| Sterilisation Rate | 99.9% (E. Coli) @ 25 LPM |
| Service Life | 3,000 hours |
| Waterproof Grade | x7 |
| Functionalities | Built-in flow switch activates with water flow |
| Does not heat the water | |
| Built-in LED status control | |
| Dimensions | 360 mm x 140 mm |
