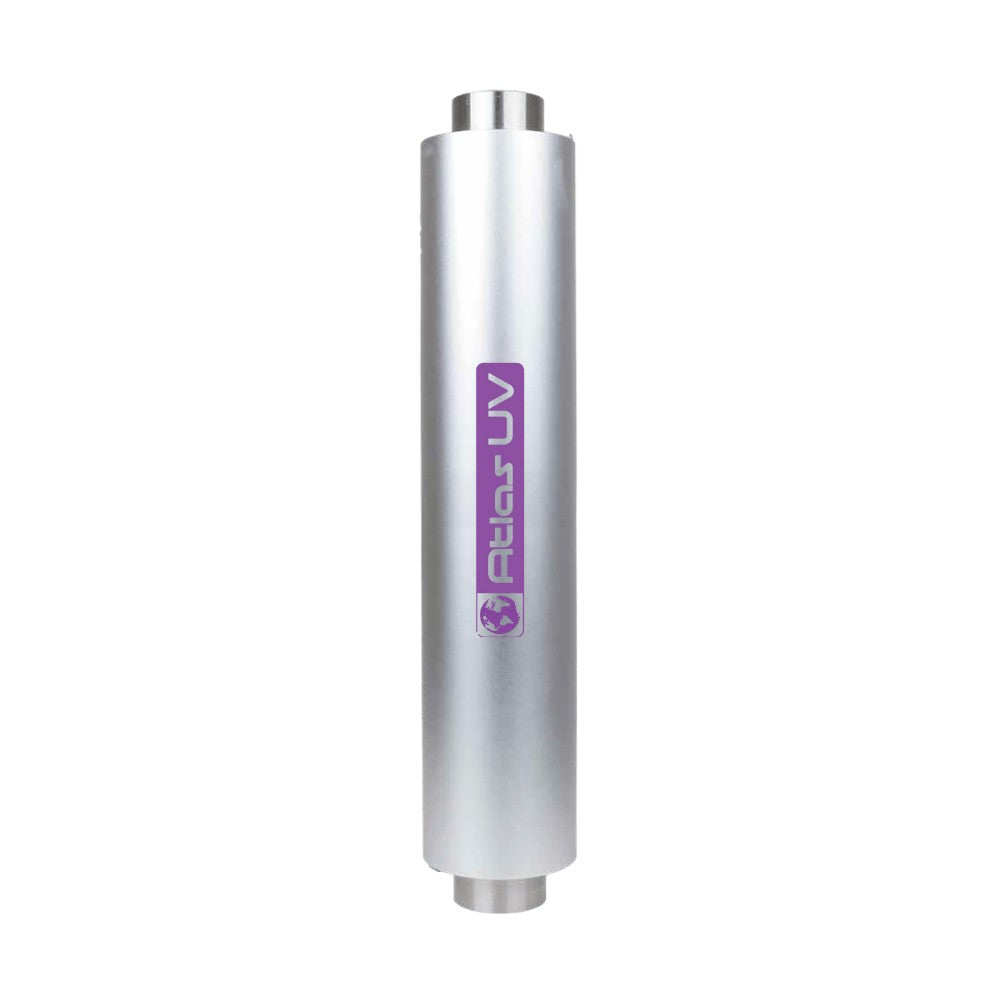

Atlas Ultraviolet UV LED 1in - 50L/min System
Atlas Ultraviolet UV LED 1in - 50L/min System
SKU:
- Free shipping when you spend over £70 (incl. VAT).
Couldn't load pickup availability
The Atlas LED UV 50LPM ECO is a high-capacity UV-C sterilisation system designed for demanding commercial and high-flow water treatment applications. Delivering up to 99.9% disinfection performance against E. Coli at flow rates up to 50 litres per minute, it provides powerful chemical-free microbiological protection without altering water taste, odour, or temperature.
Constructed from robust 304 stainless steel and aluminium, the unit is built for long-term durability in professional installations. The intelligent built-in flow switch ensures the UV system only operates when water is flowing, helping to maximise efficiency and extend the 5,000-hour UV LED lifespan.
With high-flow BSPP 1” connections, low-pressure drop design, and compact dimensions, the Atlas LED UV 50LPM ECO is ideal for commercial reverse osmosis systems, filtration skids, hospitality applications, and industrial water treatment systems requiring reliable UV disinfection performance.

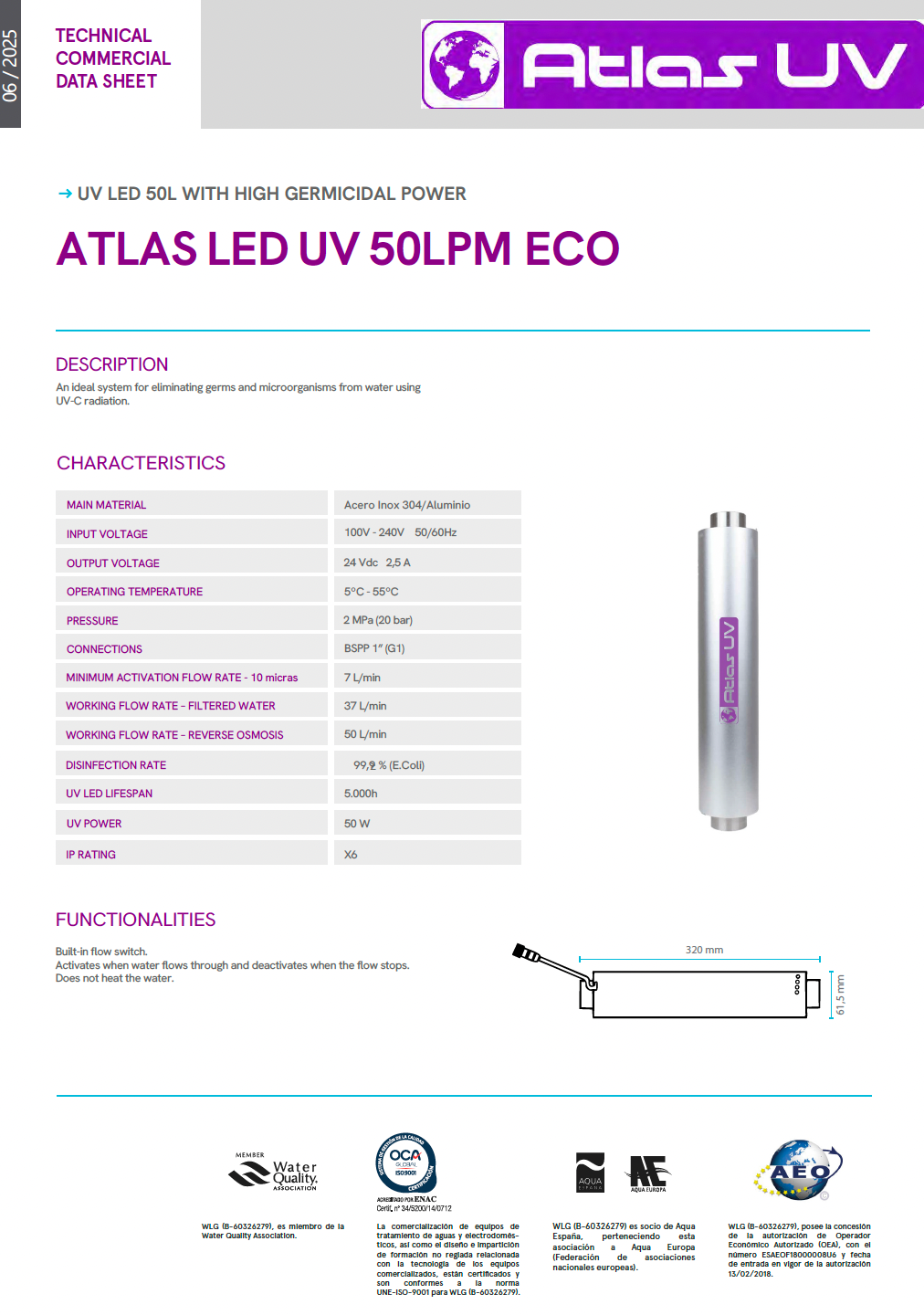

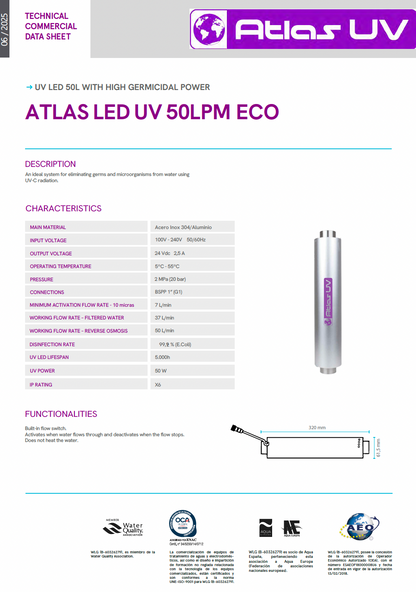

| Main Material | Stainless Steel 304 / Aluminium |
| Input Voltage | 100V–240V 50/60Hz |
| Output Voltage | 24 Vdc 2.5A |
| Operating Temperature | 5°C – 55°C |
| Pressure | 2 MPa (20 bar) |
| Connections | BSPP 1” (G1) |
| Minimum Activation Flow Rate | 7 L/min |
| Working Flow Rate – Filtered Water | 37 L/min |
| Working Flow Rate – Reverse Osmosis | 50 L/min |
| Disinfection Rate | ≥99.9% (E. Coli) |
| UV LED Lifespan | 5,000 hours |
| UV Power | 50 W |
| IP Rating | X6 |
| Functionalities | Built-in automatic flow switch |
| Does not heat the water | |
| Dimensions | 320 mm x 61.5 mm |
