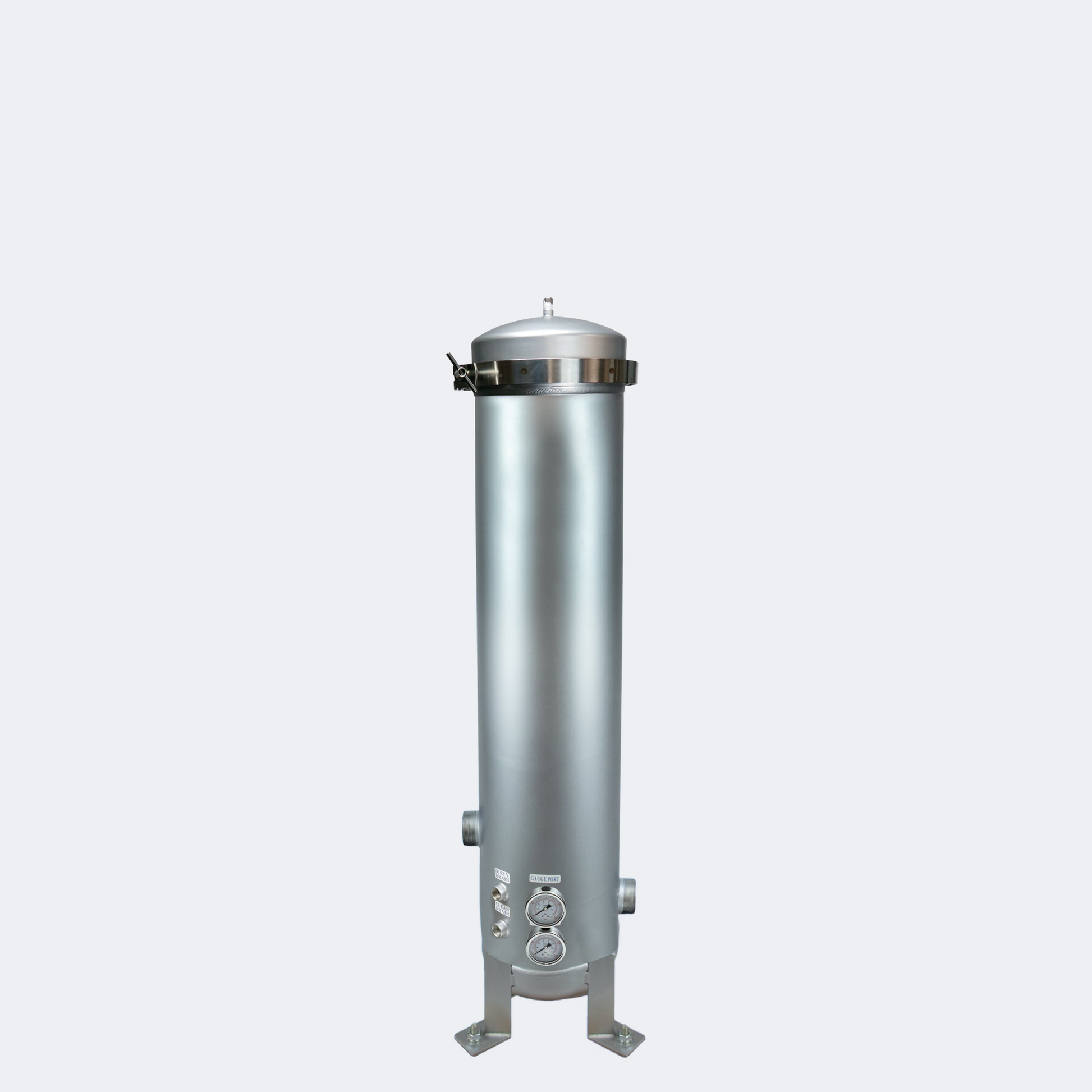

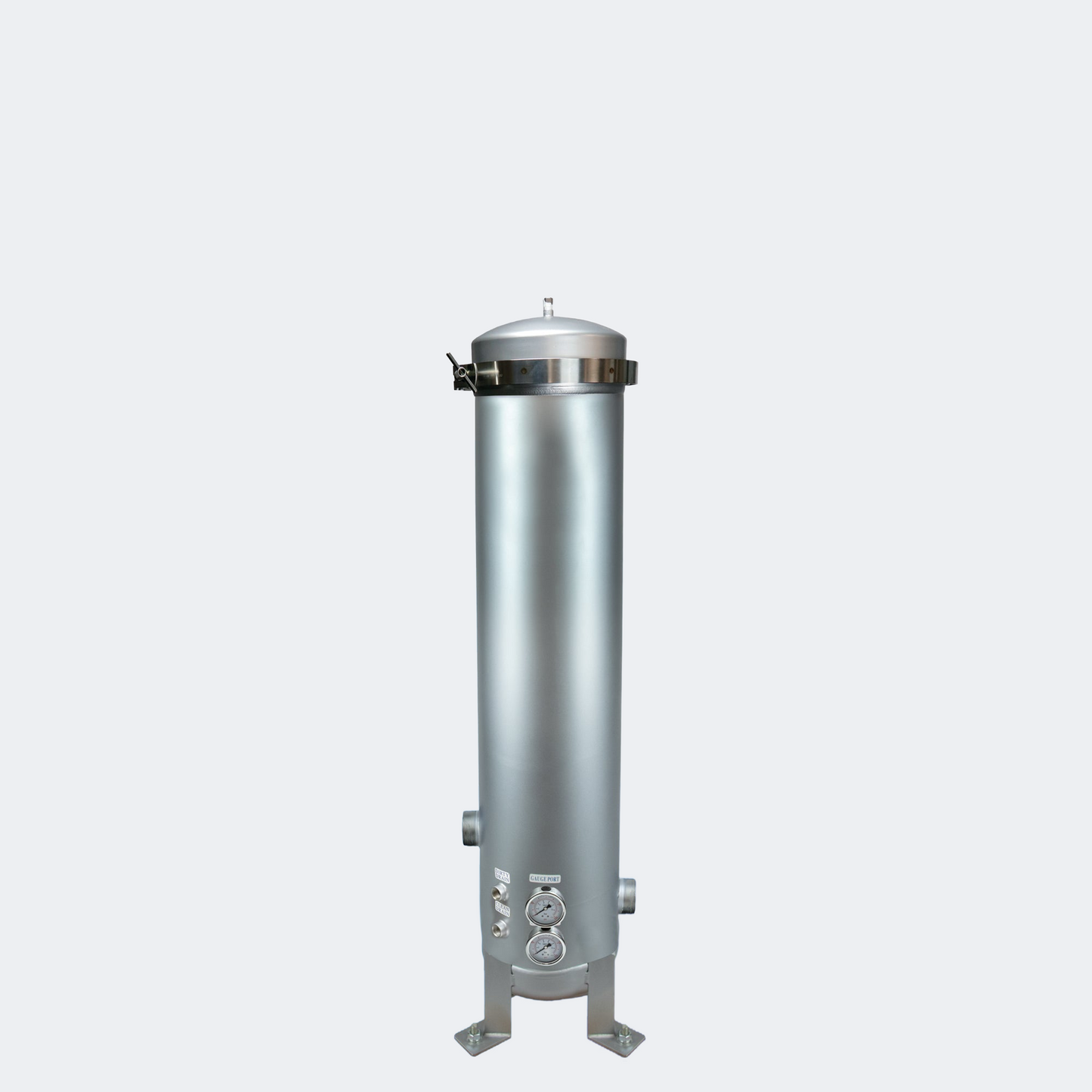

CORE 5 Round Filter Housing in 316L Stainless Steel with 2" Ports

The Core stainless steel multi-round range is capable of operating up to 700lpm. Manufactured from 316L stainless steel, with gauge ports, drain ports and a universal cartridge adaptor to accept code 1, 3 and 8 end capped cartridges, this range offers a competitive solution for smaller flow rate applications. An extension of the 3 round range, these 5 round housings take advantage of a nominal cost to increase body size, resulting in an increase in flow rate capacity of over 60%. As with the rest of the Core range, these housings are supplied with gauge ports, to allow pressure gauges to be fitted for filter monitoring as well as drain ports for effective housing emptying, for easy change out and reduced product wastage.

CLICK HERE TO DOWNLOAD THE DATASHEET / TECHNICAL DRAWING

Material: 316L Stainless Steel
Configuration: 5 Cartridges (Diameter: 2.5")
Port Size: 2"
Seal: Buna-N
Temperature Rating (°C): 120
Max Pressure (bar): 10
Flow Rate (lpm): 20" = 250, 30" = 375, 40" = 500
End-Cap: DOE / 222 FIN / 222 SOE
