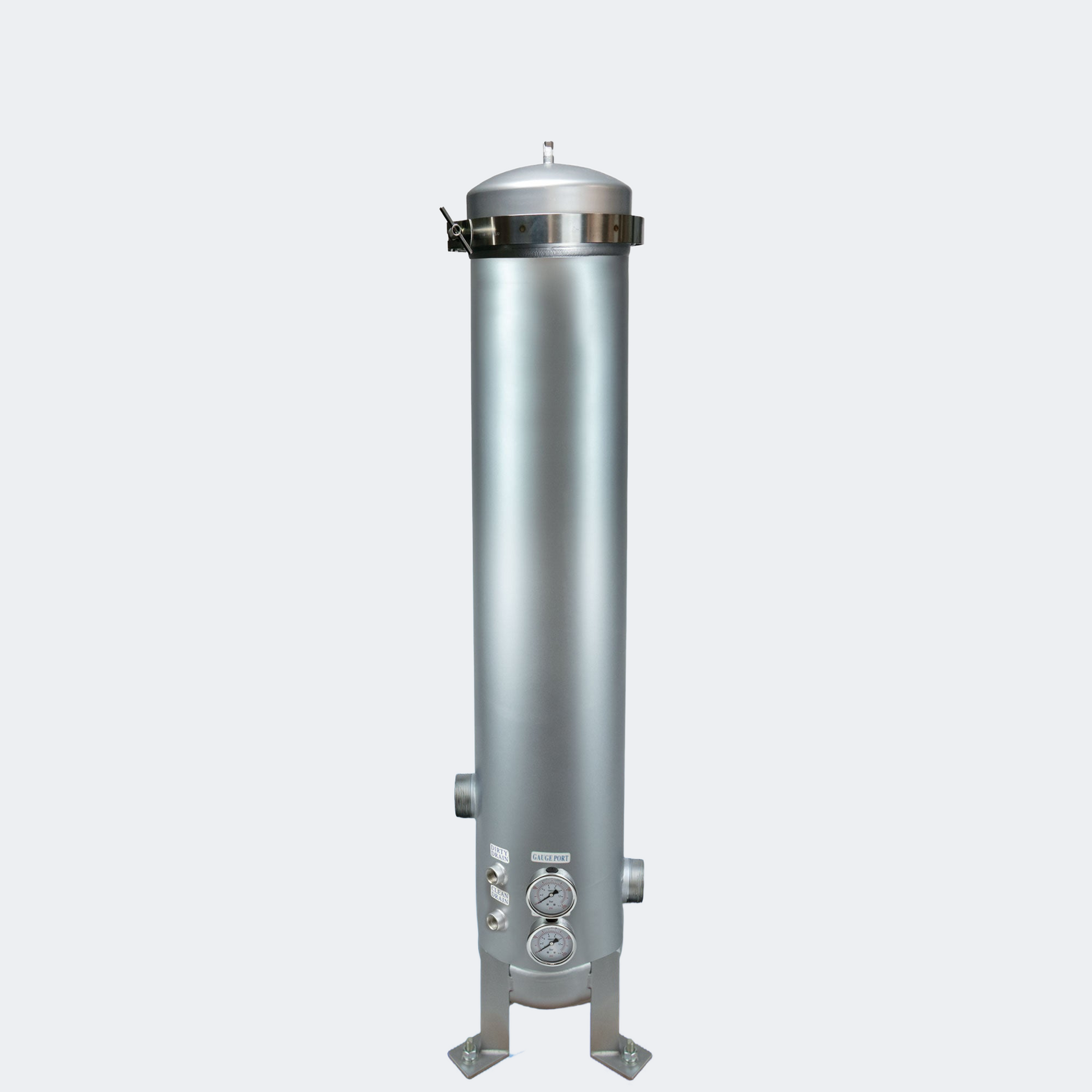

CORE 3 Round Filter Housing in 316L Stainless Steel with 2" Ports

The Core stainless steel multi-round range is capable of operating up to 700lpm. Manufactured from 316L stainless steel, with gauge ports, drain ports and a universal cartridge adaptor to accept code 1, 3 and 8 end capped cartridges, this range offers a competitive solution for smaller flow rate applications. The smallest multi-round housings for rugged environments start at a 3 x 20", offering an alternative solution to where a single round equivalents are at maximum flow. With 2" ports, flow and pressure is dispersed throughout these wide housings and across the multiple cartridges resulting in lower pressure drop and more even particulate distribution. Housings are equipped with gauge ports and drain ports as standard, which allow pressure gauges to be fitted for filter monitoring and the housing to the fully emptied respectively.

• Material: 316L Stainless Steel
• Configuration: 3 Cartridges
  • 20" = L: 20" x D: 2.5"
  • 30" = L: 30" x D: 2.5"
• Port Size: 2"
• Seal: Buna-N
• Temperature Rating (°C): 120
• Max Pressure (bar):10
• Flow Rate (lpm):
  • 20" = 150
  • 30" = 225
• End-Cap: DOE / 222 FIN / 222 SOE
