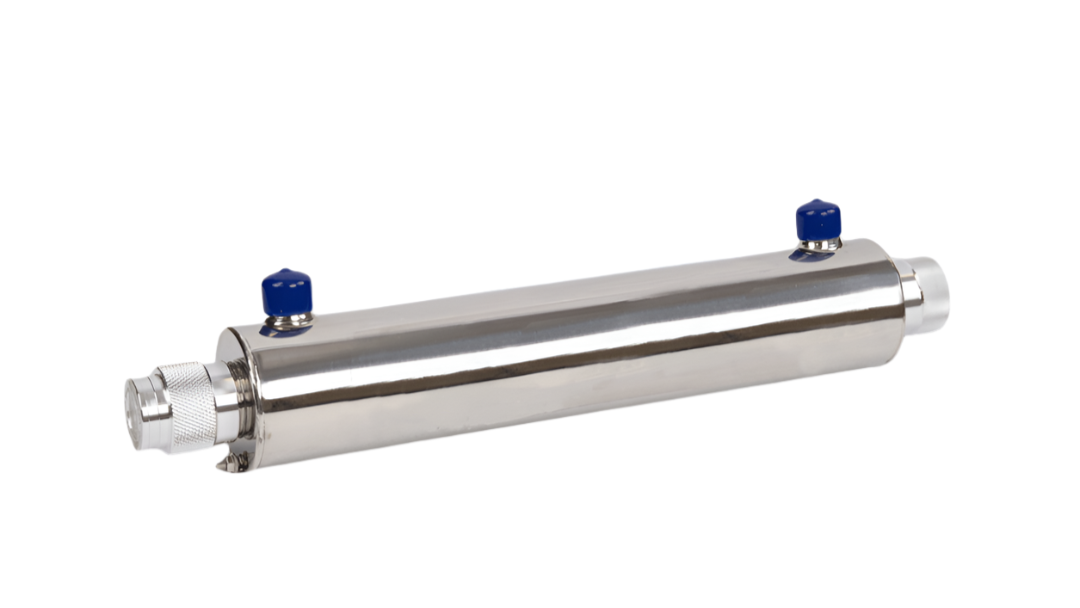

Ultraviolet (UV) Sterilisation System

Achieves a 99.99% reduction in bacteria, viruses, protozoa, and cysts without using chemicals. Durable stainless steel reactor chamber with an electro-polished finish. Space-saving compact design for easier installation.

Our “T” Models each come with a Lamp Life Countdown Feature and will give an indicator after 365 days to replace the UV Lamp within the system. These models can be found on the one other listing in our UV system range.

Applications

• Drinking Water
• Food & Beverage
• Medical Sterilisation
• General Industrial Processes

Model Specifications

PV-1

• Weight kg – 1.7
• Dimensions mm – 470 x 190 x 160
• Flow Rate gpd (lpm) – < 1,450 (< 3.8)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 1/4 ” Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.17
• Lamp Length mm – 212
• Lamp Power W – 10
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

PV-2

• Weight kg – 2.1
• Dimensions mm – 470 x 190 x 160
• Flow Rate gpd (lpm) – < 2,090 (< 7.6)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 1/4 ” Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.24
• Lamp Length mm – 287
• Lamp Power W – 14
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

PV-4

• Weight kg – 2.1
• Dimensions mm – 470 x 190 x 160
• Flow Rate gpd (lpm) – < 5,750 (< 15.1)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 1/2 ” Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.24
• Lamp Length mm – 230
• Lamp Power W – 19
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

PV-6

• Weight kg – 2.6
• Dimensions mm – 660 x 210 x 160
• Flow Rate gpd (lpm) – < 8,640 (< 22.7)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 1/2 ” Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.32
• Lamp Length mm – 436
• Lamp Power W – 24
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

PV-8(T)

• Weight kg – 3.2
• Dimensions mm – 1000 x 190 x 160
• Flow Rate gpd (lpm) – < 11,530 (< 30.3)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 3/4 ” Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.39
• Lamp Length mm – 645
• Lamp Power W – 32
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

PV-12(T)

• Weight kg – 3.7
• Dimensions mm – 1000 x 190 x 160
• Flow Rate gpd (lpm) – < 17,270 (< 45.4)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 3/4 ” & 1/2″ Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.52
• Lamp Length mm – 843
• Lamp Power W – 39
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

PV-18T

• Weight kg – 3.7
• Dimensions mm – 1000 x 190 x 160
• Flow Rate gpd (lpm) – < 25,900 (< 68.1)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 1 ” Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.32
• Lamp Length mm – 422
• Lamp Power W – 40
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

PV-24T

• Weight kg –
• Dimensions mm –
• Flow Rate gpd (lpm) – < 34,540 (< 90.8)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 1 ” Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.33
• Lamp Length mm – 512
• Lamp Power W – 50
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

PV-35T

• Weight kg –
• Dimensions mm –
• Flow Rate gpd (lpm) – < 50,400 (< 132.5)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 1 ” Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.50
• Lamp Length mm – 702
• Lamp Power W – 65
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

PV-42T

• Weight kg –
• Dimensions mm –
• Flow Rate gpd (lpm) – < 60,490 (< 159)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 1″ & 1/2″ Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.48
• Lamp Length mm – 843
• Lamp Power W – 80
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

PV-52T

• Weight kg – 6.2
• Dimensions mm –
• Flow Rate gpd (lpm) – 74,860 (< 196.8)
• Operating Pressure psi (bar) – < 125 (< 8.6)
• Ambient Water Temp. °C (°F) – 2 – 40 (36 – 104)
• Transmittance – >75%
• Maximum Iron g/G (mg/l) – 7 (120)
• Maximum Turbidity NTU – 1
• Inlet & Outlet Connections- 1″ & 1/2″ Male BSP
• Input Voltage V – 220
• Input Frequency Hz – 50 – 60
• Power Lead Length M – 1.8
• Lamp Weight kg – 0.57
• Lamp Length mm – 1052
• Lamp Power W – 100
• Lamp Radiation Range nm – 253.7
• Lamp Service Life hrs – 10,000

Ultraviolet (UV) sterilisation is a proven and efficient method for rapidly disinfecting water without relying on heat or chemical treatments like chlorination or ozonisation. UV ensures the water remains unchanged, introducing no unwanted colours, tastes, or odours, and produces no harmful by-products.

UV filtration operates with minimal water contact time compared to more conventional methods, making it suitable for a wide range of flow rates, from light domestic use to the high demands of industrial applications. Our advanced UV systems deliver consistent and effective removal of bacteria, viruses, and microorganisms, ensuring top-quality water treatment without compromise.
