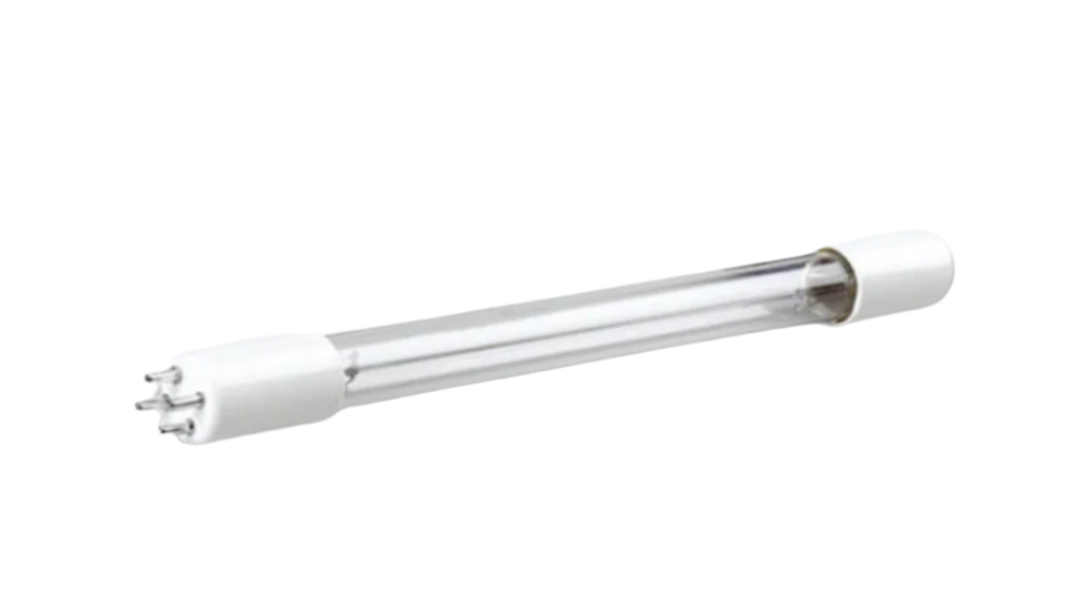

Ultraviolet (UV) Sterilisation System Lamp

We recommend replacing UV lamps at least once a year. Beyond this period, we cannot guarantee 100% effectiveness in the control and removal of bacteria, viruses, and other microorganisms through Ultraviolet treatment.

This replacement UV lamp is designed for use in Ultraviolet water sterilisation systems. It is supplied in the original manufacturer’s secure packaging, a robust cardboard tube with packing insulation, ensuring it arrives safely.

Low-pressure mercury-arc UV germicidal lamps are specifically engineered to maximise Ultraviolet radiation output, with approximately 90% of their total rated energy emitted at the optimal wavelength of 253.7 nm.

Specifications

PV-1 Lamp

Weight kg – 0.17
Length mm – 212
Lamp Power W – 10
Radiation Range nm – 253.7
Service Life hrs – 10,000

PV-2 Lamp

Weight kg – 0.24
Length mm – 287
Lamp Power W – 14
Radiation Range nm – 253.7
Service Life hrs – 10,000

PV-4 Lamp

Weight kg – 0.24
Length mm – 330
Lamp Power W – 19
Radiation Range nm – 253.7
Service Life hrs – 10,000

PV-6 Lamp

Weight kg – 0.32
Length mm – 505
Lamp Power W – 24
Radiation Range nm – 253.7
Service Life hrs – 10,000

PV-8 / 8T Lamp

Weight kg – 0.39
Length mm – 645
Lamp Power W – 32
Radiation Range nm – 253.7
Service Life hrs – 10,000

PV-12 / 12T Lamp

Weight kg – 0.52
Length mm – 843
Lamp Power W – 39
Radiation Range nm – 253.7
Service Life hrs – 10,000

PV-18T Lamp

Weight kg – 0.32
Length mm – 422
Lamp Power W – 40
Radiation Range nm – 253.7
Service Life hrs – 10,000

PV-24T Lamp

Weight kg – 0.33
Length mm – 512
Lamp Power W – 50
Radiation Range nm – 253.7
Service Life hrs – 10,000

PV-35T Lamp

Weight kg – 5.0
Length mm – 702
Lamp Power W – 65
Radiation Range nm – 253.7
Service Life hrs – 10,000

PV-42T Lamp

Weight kg – 0.48
Length mm – 843
Lamp Power W – 80
Radiation Range nm – 253.7
Service Life hrs – 10,000

PV-52T Lamp

Weight kg – 0.57
Length mm – 1052
Lamp Power W – 100
Radiation Range nm – 253.7
Service Life hrs – 10,000
